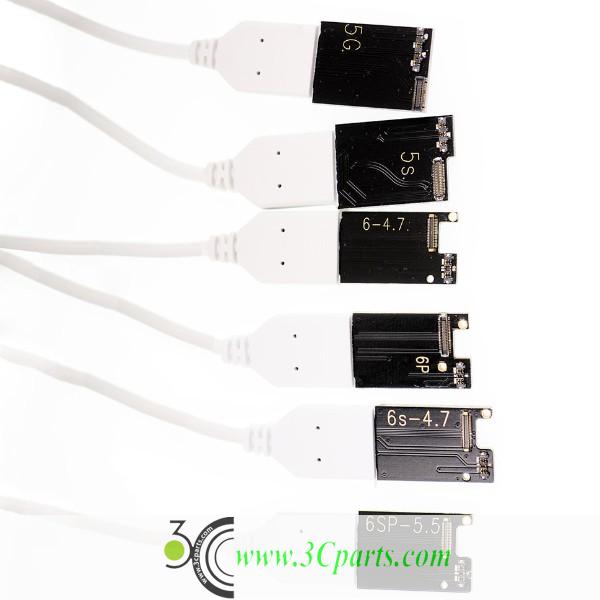

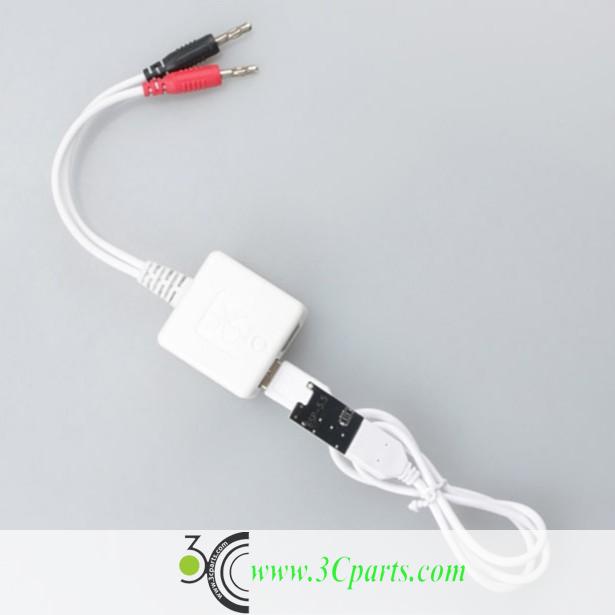

Mijing AMTC Test Cable for iPhone 5G/5S/6G/6P6S/6SP
New Chip for 5G/5S/6G/6P/6S/6SP
Function introduction:
1,Support for the motherboard brush machine
The test line PCB board needed to install the brush on the motherboard,the battery,the switch on the board to push(switch to brush mode type),connect the test line to the USB port of the computer,the hardware detected after the brush board carried out the transfer of the corresponding firmware.
2,Fast charging battery
The battery is mounted to the PCB board,the switch board and push down(switch to charging mode,the power supply to the 4.2V output tabel) voltage,the power supply interface of the test line is connected to the battery to charging the battery quickly.
3, Maintenance motherboard detection current
Maintenance to observe the motherboard current when the test line PCB plate to the need to detect the motherboard,and the panel switch push down(switch t charging mode),power meter to 4.2V output voltage,can be observed for a long time does not appear to reflect the current motherboard and restart prompt temperature is too high.
